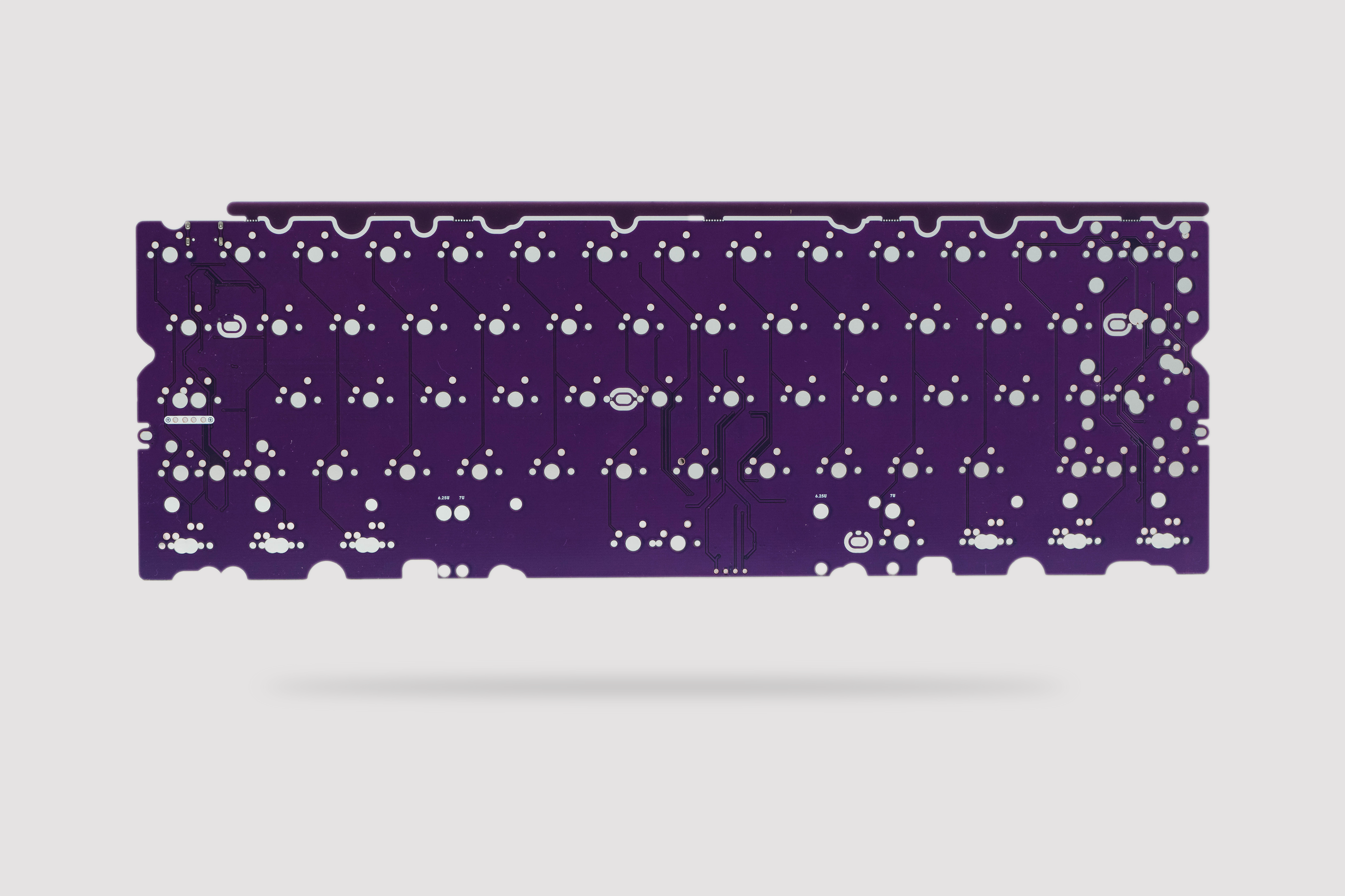

[FR4 & CEM-3 | 1.6mm] Mechlovin' Zed60 Rev. 1.2 60% PCB

Name: [FR4 & CEM-3 | 1.6mm] Mechlovin' Zed60 Rev. 1.2 60% PCB
Brand: Mechlovin'
Price: 42.0 USD
Availability: InStock

Style: [FR4] On-board USB Type-C

Variant

Price:

$42.00

Quantity:

Share this product

NOTES:

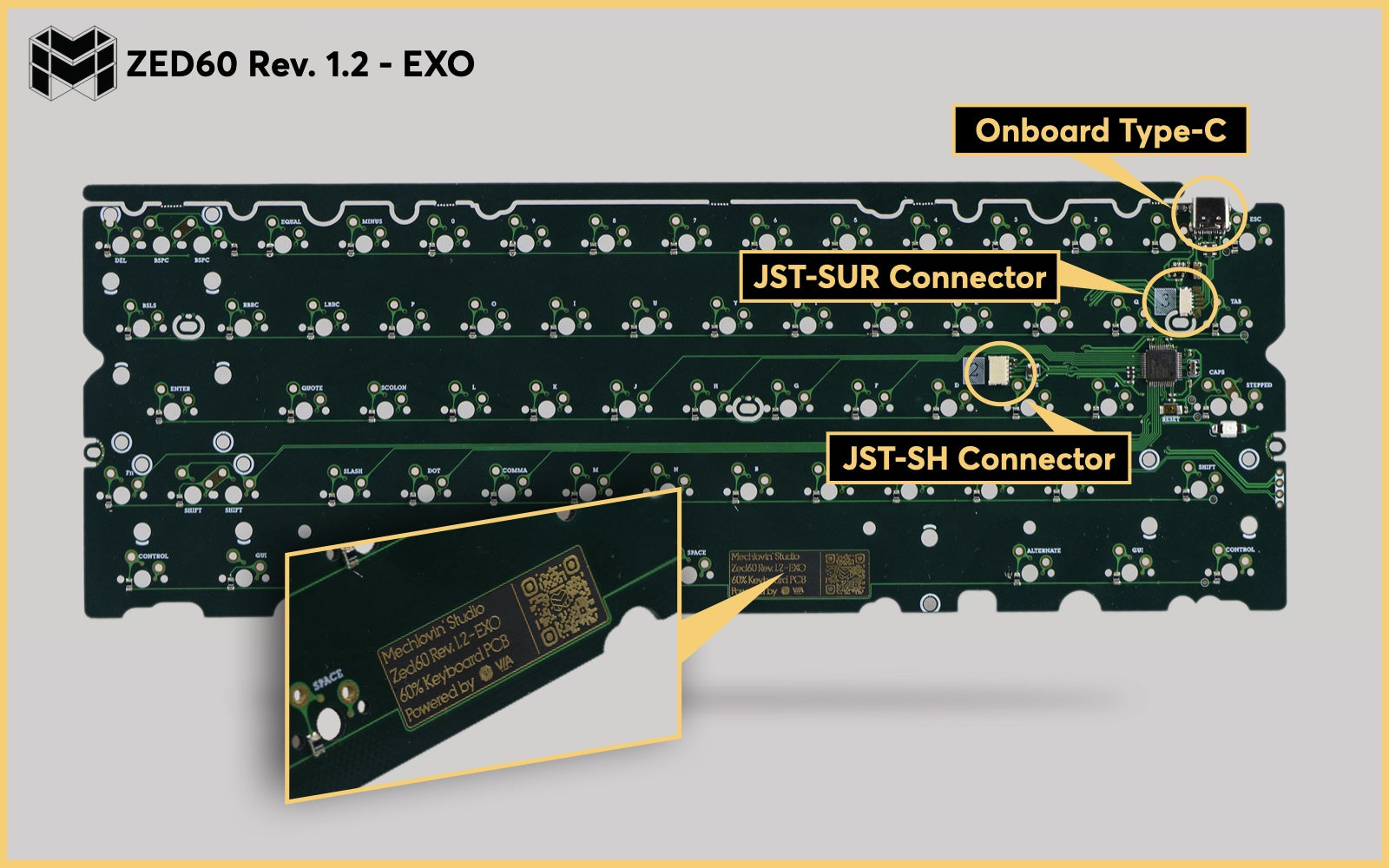

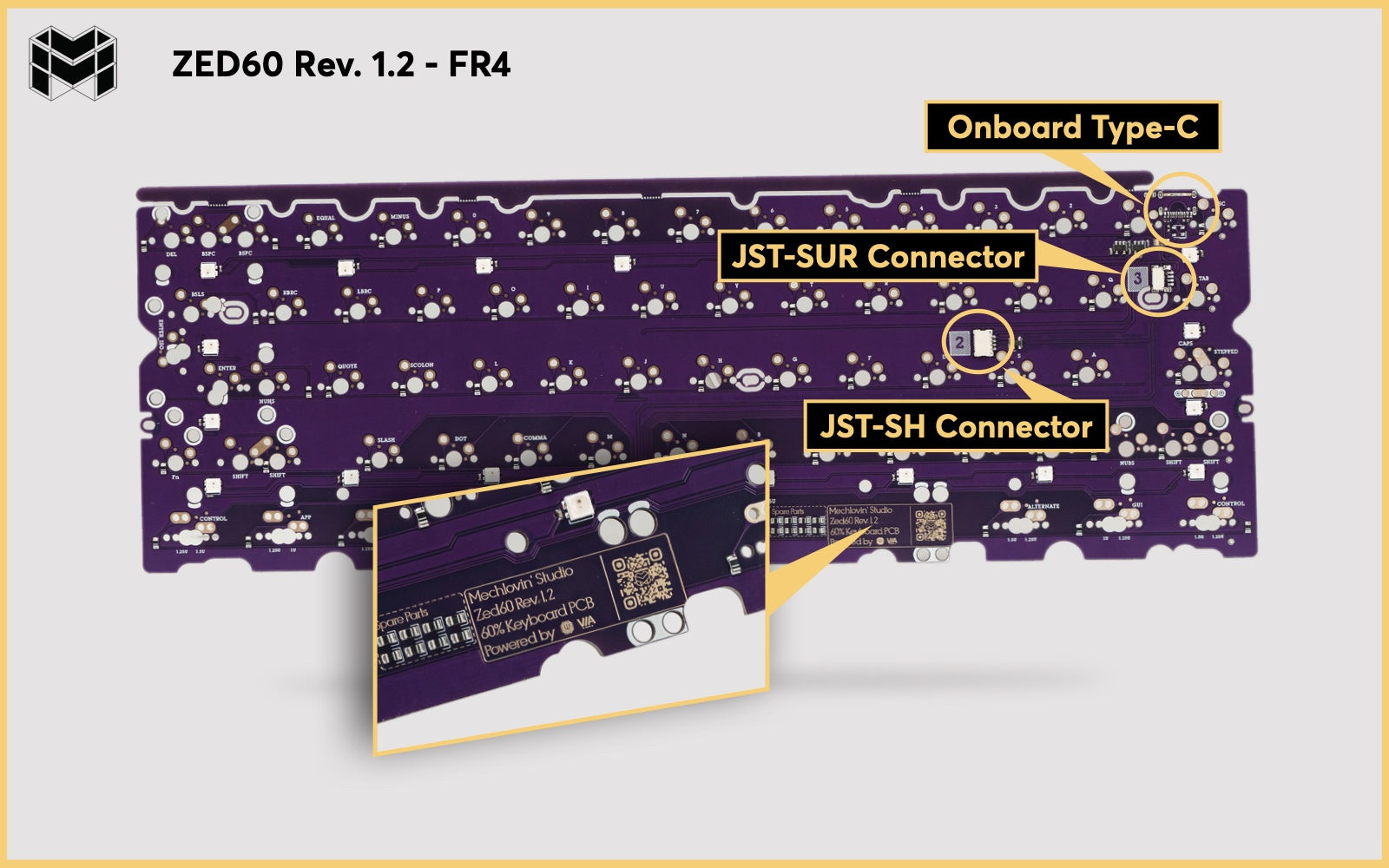

Rev. 1.2 Update: We have streamlined the JST headers on this revision. The PCB now has either a standard JST-SH connector that specifically supports the R2 Unikorn cutout, or a low-profile JST-SUR connector that works on a wide variety of 60% boards that use a daughterboard without having to worry about bottom case fitment (since the JST-SUR connector is very thin at 1.75 mm). We will include a JST-SUR to JST-SH cable for each ZED60 PCB with the SUR connector option so you can use it with standard JST-SH daughterboards.
Rev. 1.2 Update: Added cutouts to support QK60 and Tofu Redux cases.

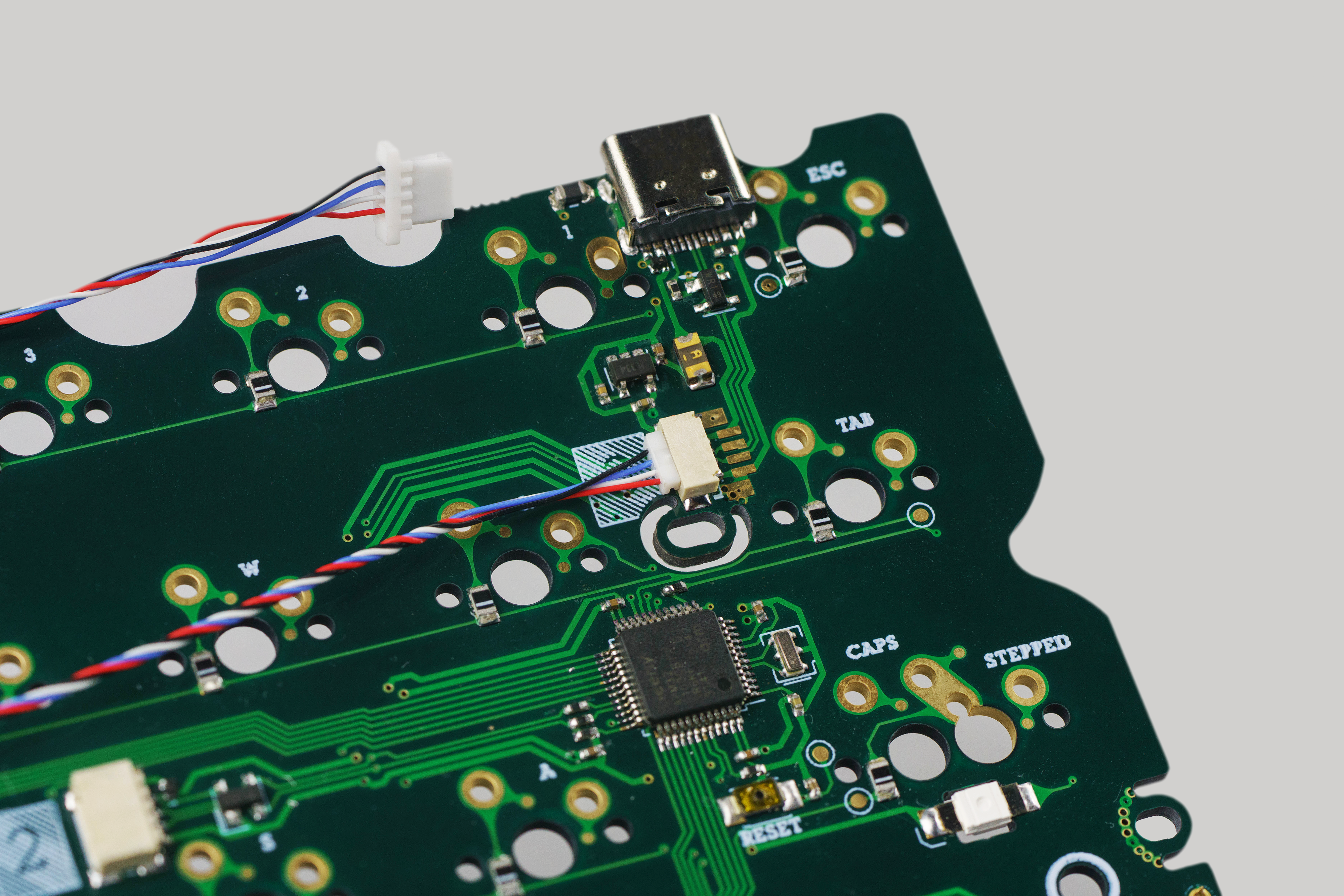

The on-board USB type C is positioned to fit with the R1 Unikorn, Wilba Salvation & other boards with similar USB cutout.
You can choose to purchase daughterboard & JST cable add-ons.

SPECS:

Supported layout
Compatible with Unikorn R1 (with on-board USB Type-C) and R2 (with JST connector)
Compatibility with a variety of 60% boards
Supports tray-mounting
Material: FR4
Powered by APM32F103 MCU
Programmable via QMK and VIA
RGB underglow
PCB thickness: 1.6mm
No flex cuts
ESD protection

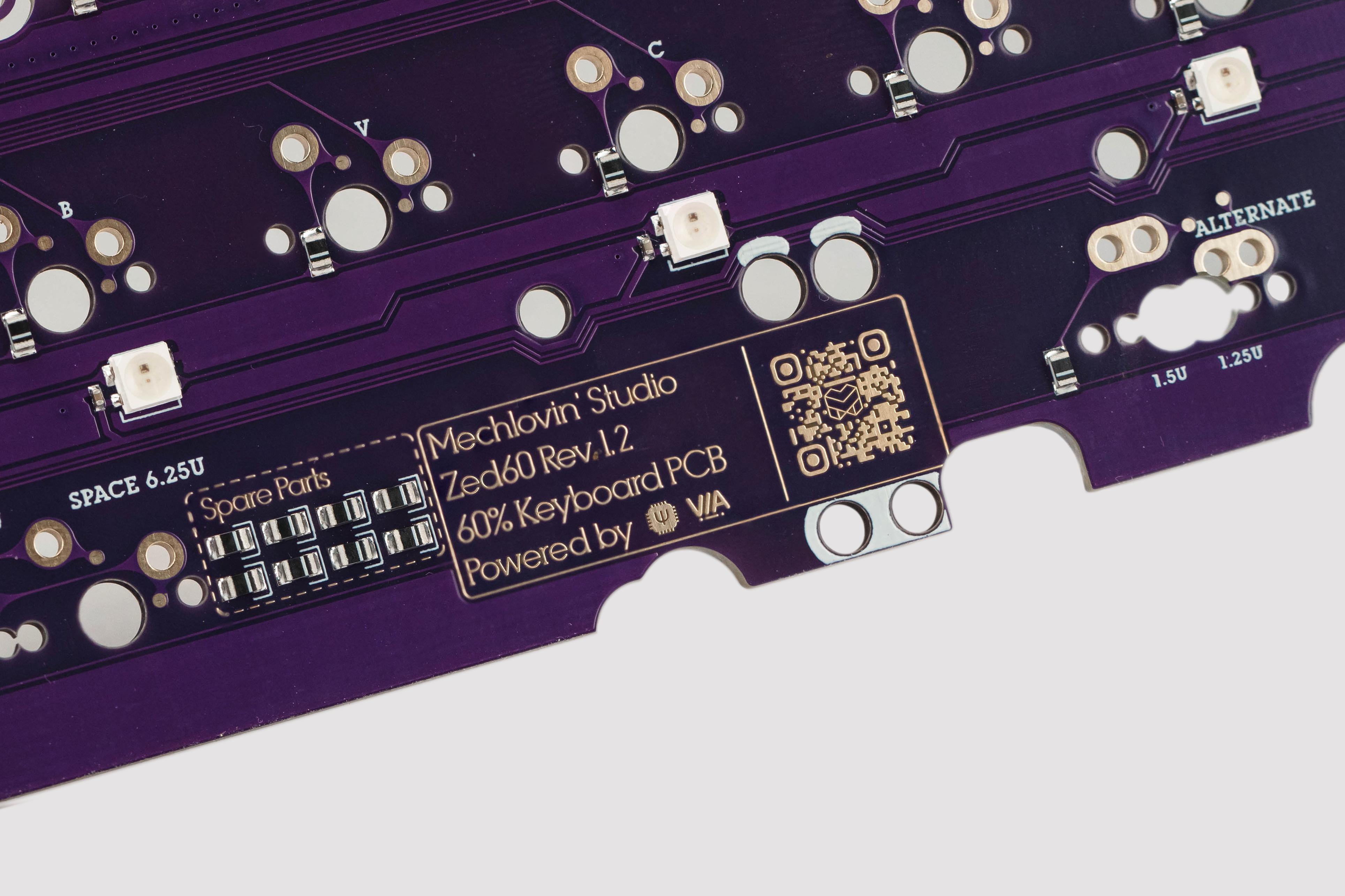

PCB color: Purple (FR4) / Red (CEM-3) with immersion gold surface finish
