NOTES ON COMPATIBILITY

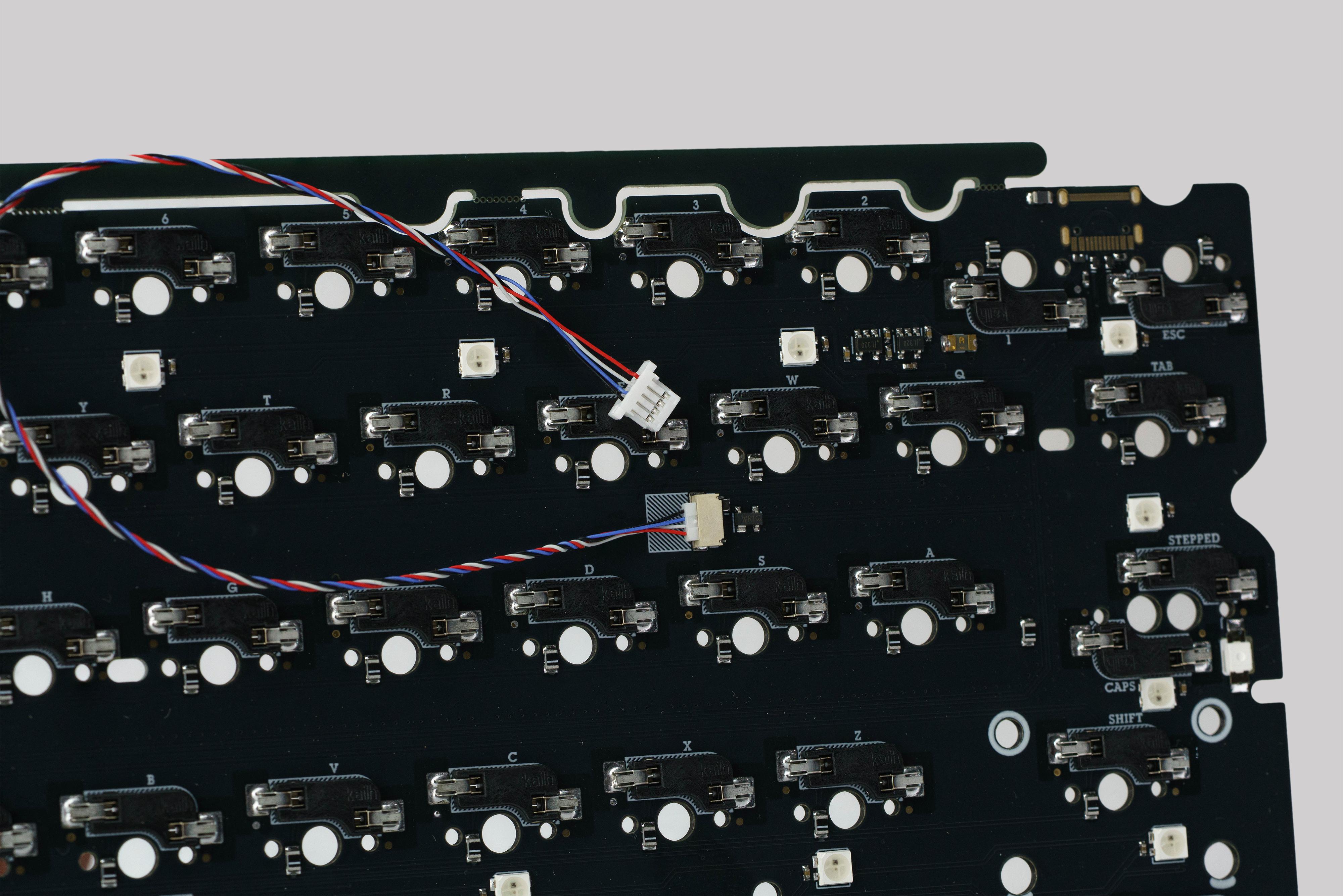

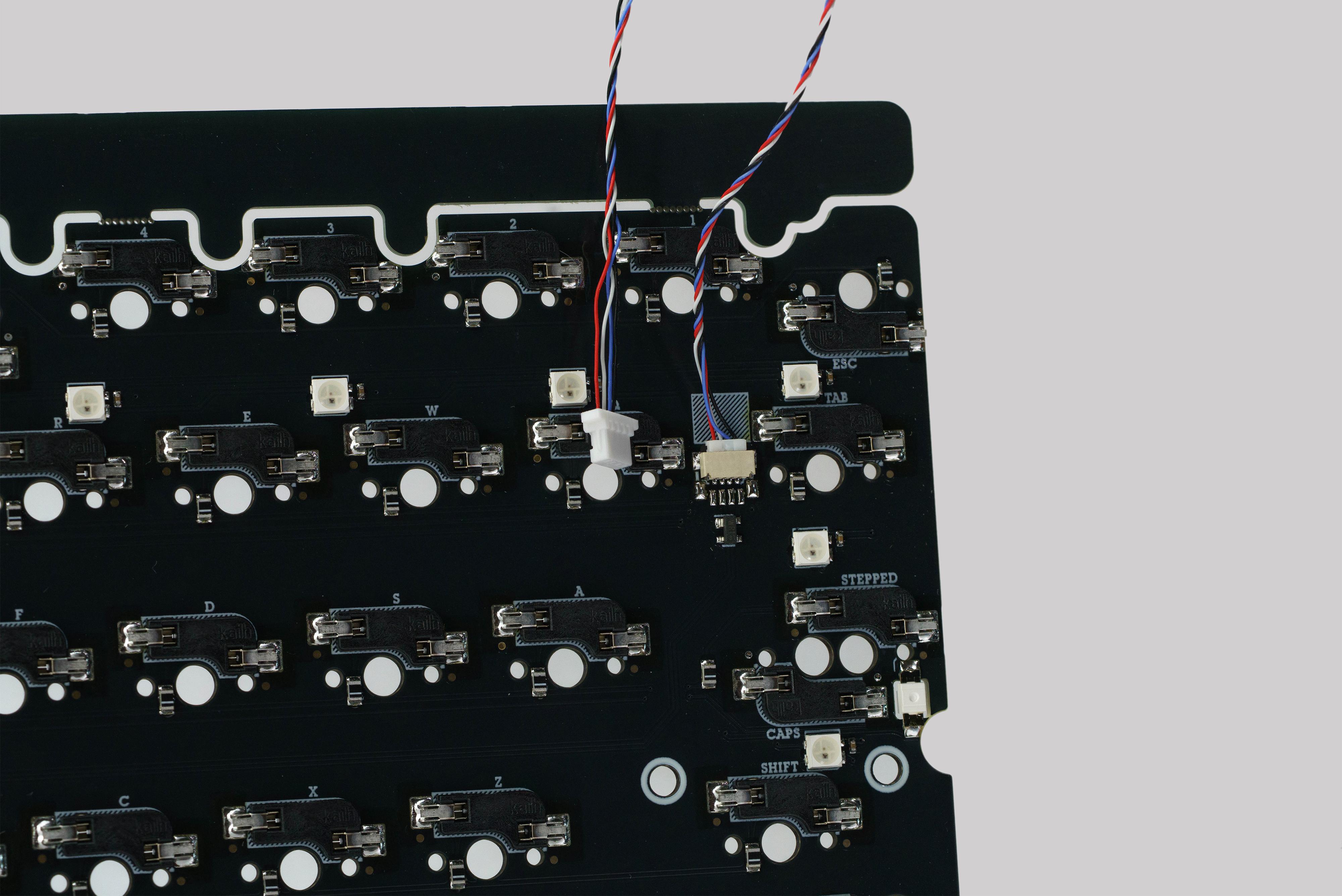

- Use with daughterboard: These PCBs feature a low-profile JST-SUR connector (only 1.75 mm thick), making them compatible with a wide range of 60% and 65% boards that use daughterboards, without the usual concerns about bottom case fitment. Each PCB with the JST-SUR option includes two JST-SUR to JST-SH cables (200mm long), allowing seamless use with standard JST-SH daughterboards.
-

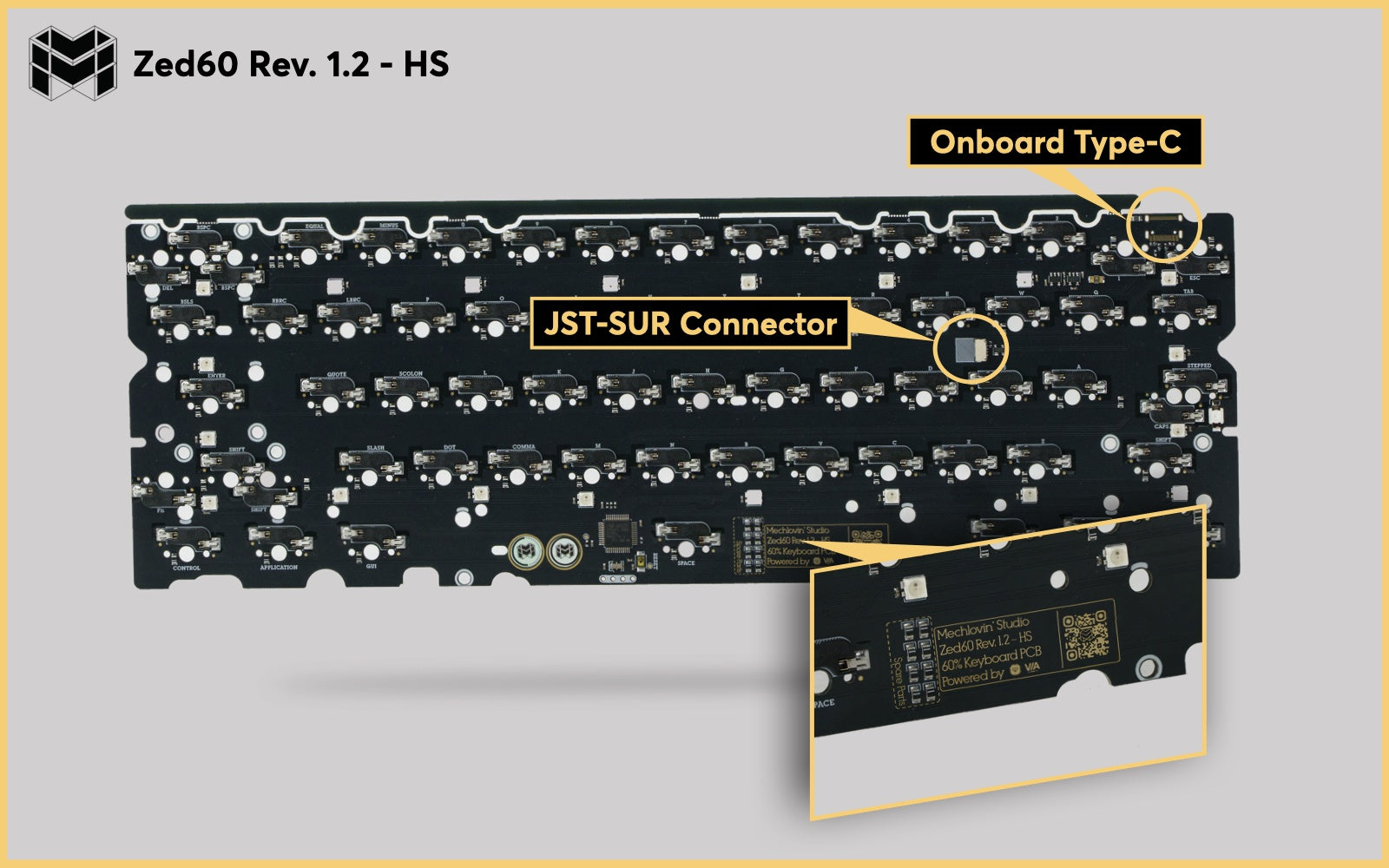

ZED60 Hotswap with on-board USB-C: connector placement is designed to be compatible with the R1 Unikorn, Wilba.Tech Salvation, and other boards with similar USB cutout positioning.

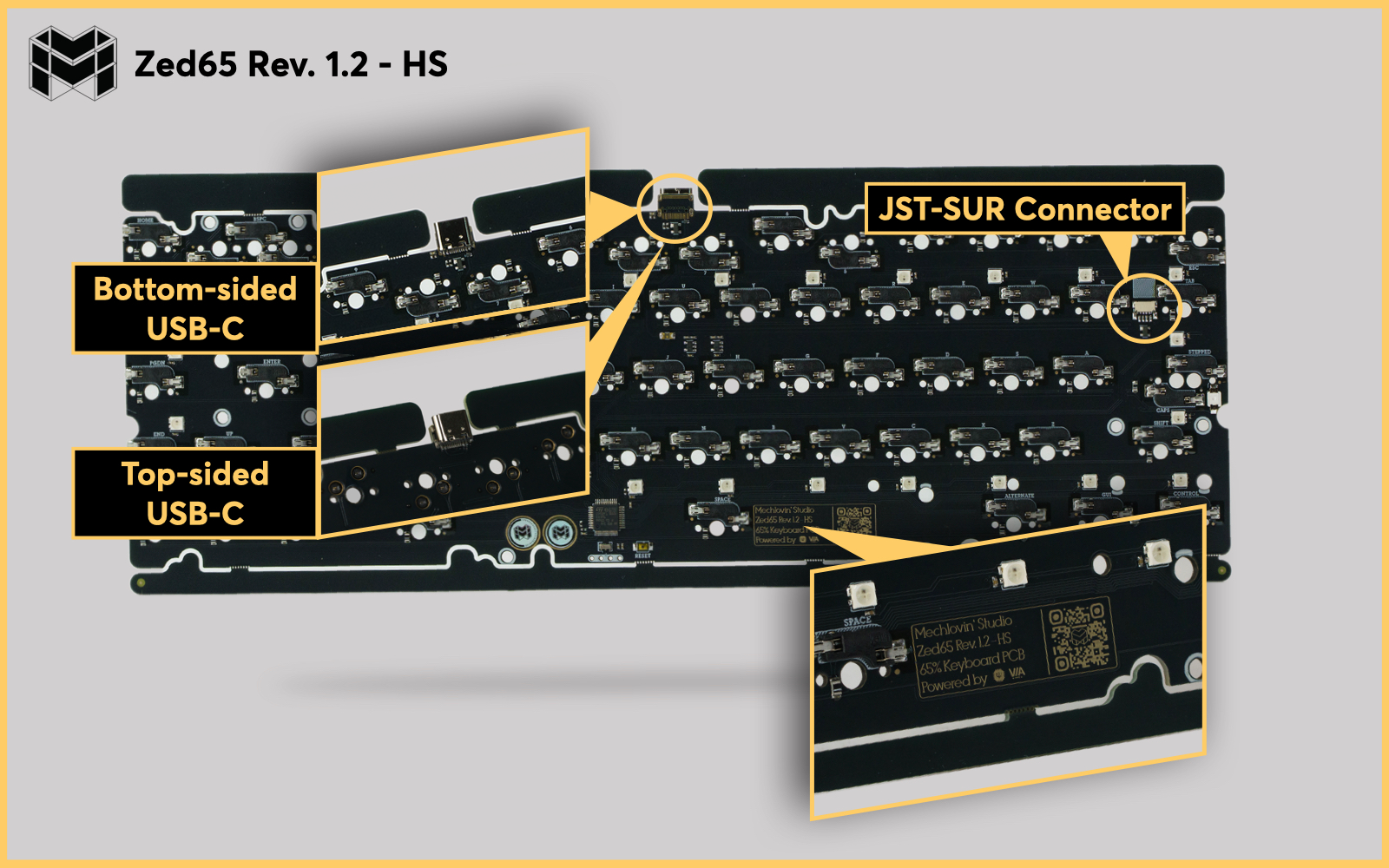

- ZED65 Hotswap with on-board USB-C: Compatible with a range of 65% boards featuring centered USB-C ports; whether bottom-facing (e.g., Dolinger 2017, Dolinger RE, Exclusive E6.5) or top-facing (e.g., TGR 910ME, Perryworks MC65)
-
If you have any questions regarding compatibility, get in touch by joining our Discord Server
- A note on o-ring hotswap builds: When using o-rings in hotswap builds, be aware that excessive tension from a tight o-ring can cause switches near the corners to lift out of their sockets. To avoid this, we recommend using a moderately snug o-ring (not overly tight) and brand-new, unused switches. We've tested several Unikorn builds with this setup and have not encountered any issues so far.
TECH SPECS
- Powered by STM32F103 MCU
- Hotswappable
- Material: FR4
- Programmable via QMK and VIA
- Underglow RGB
- Blocker RGB on ZED65
- PCB thickness: 1.6mm
- USB Connector: Type-C
- Support low-profile JST-SUR connector for use with daughterboard
- ESD protection
- PCB color: Matte black
- Immersion gold finish
- Supported layout - ZED60HS
-
Supported layout - ZED65HS
