- Please read the specs carefully. Contact us if you need support in choosing the correct PCB variant.
- This supersedes the Kay65. Top-right blocker LEDs are removed due to unpopularity.
- Supported layout
- Resource Page

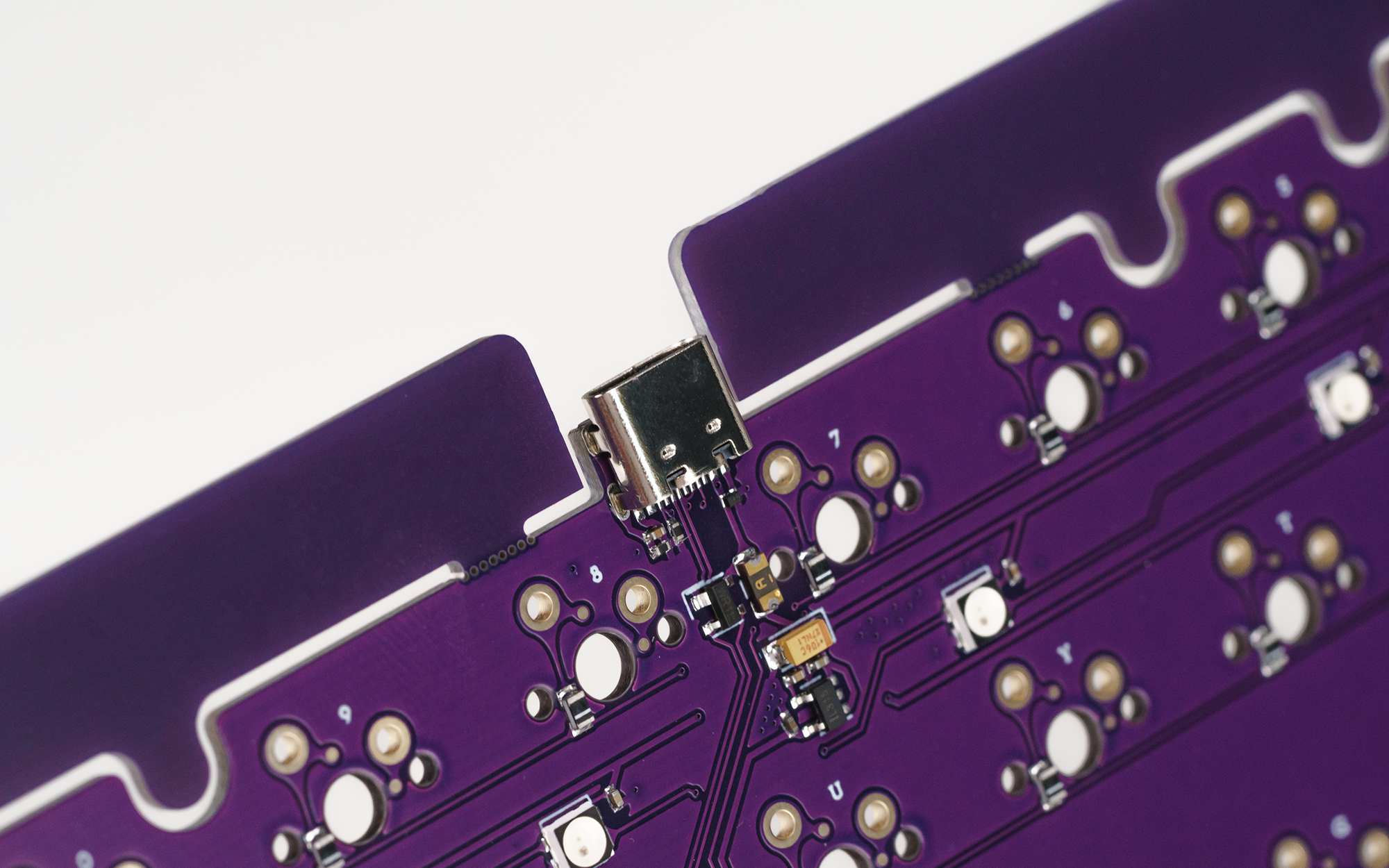

- Compatible with a variety of 65% boards with centered bottom-sided USB Type-C (Dolinger 2017; Dolinger RE; Exclusive E6.5...); top-sided USB-C (TGR 910ME; Perryworks MC65) and Mini-USB connector (TGR 910; Exent)

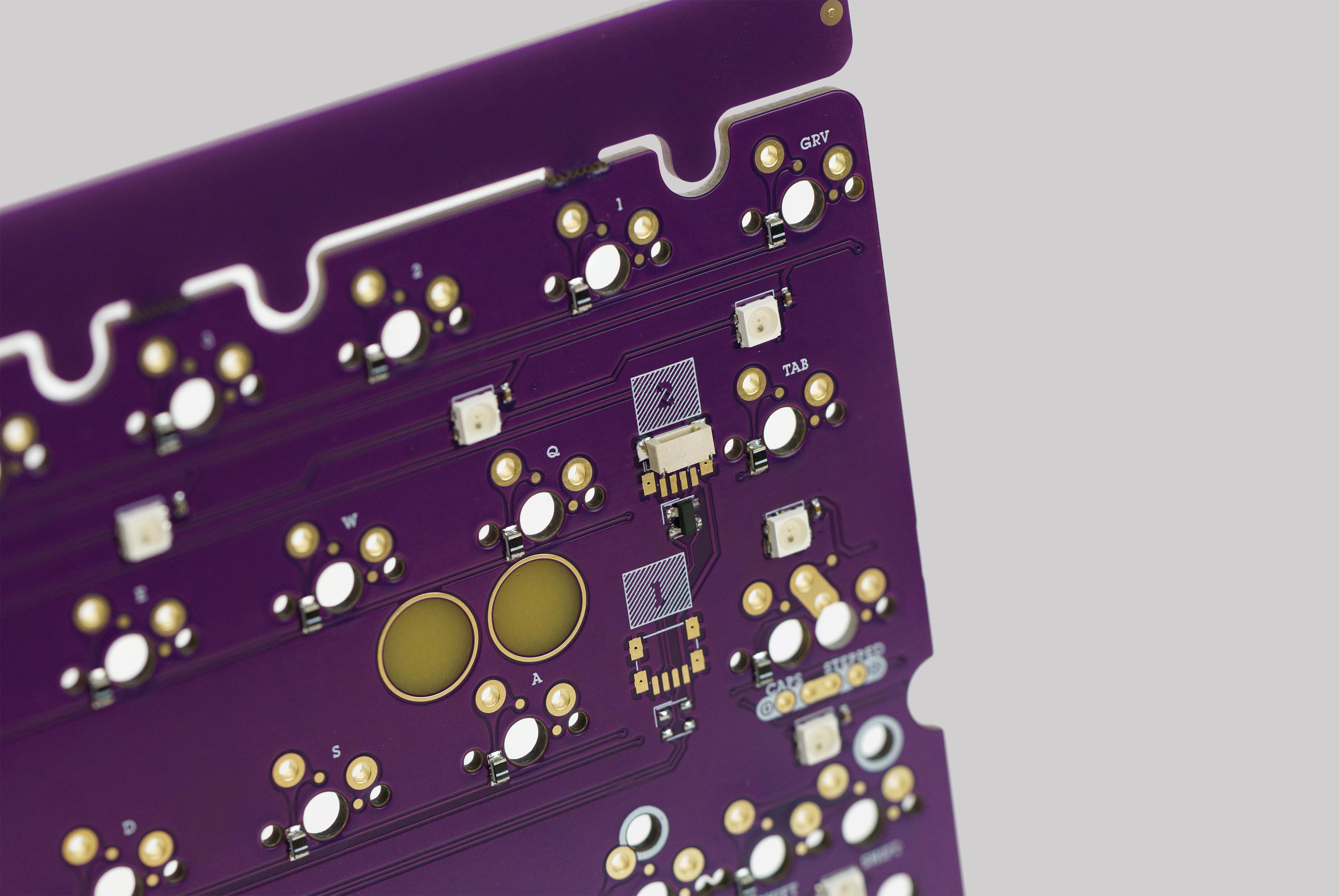

- JST connector variants available. Position 1 is for Merisi Sessantacinque and Ori CLS-2 (our past commission projects). Position 2 is designed with the Iron165 in mind.
- Powered by APM32F103 MCU
- Programmable via QMK and VIA
- Pre-soldered underglow RGB
- PCB thickness: 1.6mm
- ESD protection
- PCB color: Purple solder mask with immersion gold finish
